ELM with Power Protection Chip with FT232rl FTDI chip from factory OEM

  • With voltage regulator chip, this ELM will give your car and computer the best security while diagnosis.
    ● Added 2 power protection Chips for best security for your car
    ● With genuine FT232rl Chip
    ● Can update driver online from official website for Win7, Win8
    ● Can OEM with new design
    ● High quality, good price, good feedback 100%
    ● Fast delivery with big stock, the only manufacturer from China
    ● With life-long war
  • Email:Sales@autodiagtech.com
  • Details

  • Contact Us


ELM 327 USB ( FTDI chip + Power Protection Chips)


With voltage regulator chip, it will give your car and computer the best security while diagnosis.

Added 2 power protection Chips for best security for your car and computer

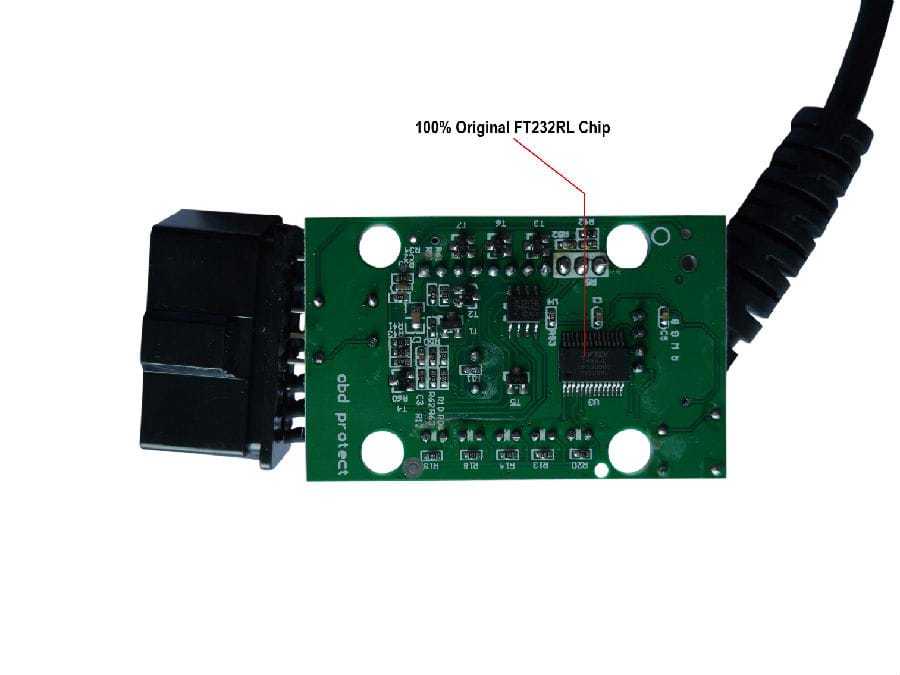

With genuine FT232rl Chip

Can update driver online from official website for Win7, Win8

Can OEM with new design

High quality, good price, good feedback 100%

Fast delivery with big stock, the only supplier from China

With life-long warranty directly from our factory


With genuine FT232rl can be tested via updating driver on official website for FT232rl; Those fake ones would be locked or failed, our genuine would get through smoothly; Ours work 100% full functions, but the fake ones would be lack of a lot important functions.




Functions:

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database)

Clear trouble codes and turn off the MIL ("Check Engine" light)

Display current sensor data, including

Engine RPM

Calculated Load Value

Coolant Temperature

Fuel System Status

Vehicle Speed

Short Term Fuel Trim

Long Term Fuel Trim

Intake Manifold Pressure

Timing Advance

Intake Air Temperature

Air Flow Rate

Absolute Throttle Position

Oxygen sensor voltages/associated short term fuel trims

Fuel System status

Fuel Pressure

Many others


Features:

OBD SCAN is the newly developed wireless scan tool. It supports all OBD-II protocols

Automatic

SAE J1850 PWM(41.6Kbaud)

SAE J1850 VPW(10.4Kbaud)

ISO9141-2(5 baud init,10.4Kbaud)

ISO14230-4 KWP(5 baud init,10.4 Kbaud)

ISO14230-4 KWP(fast init,10.4 Kbaud)

ISO15765-4 CAN(11bit ID,500 Kbaud)

ISO15765-4 CAN(29bit ID,500 Kbaud)

ISO15765-4 CAN(11bit ID,250 Kbaud)

ISO15765-4 CAN(29bit ID,250 Kbaud)

A.SAE J1939 CAN(29bit ID,250*Kbaud)

B.USER1 CAN(11*bit ID,125*Kbaud)

C.USER2 CAN(11*bit ID,50*kbaud)

Default settings(user adjustable)


Specifications:


Output ProtocolRS232 to bluetooth
Frequancy38400
Size88*46*25
Voltage12V
Current45mA
Bluetooth10M
Supported platformAndriod, Symbian, Windows Mobile, palm, pc, pocket pc.



Software:

1. For Andyiod: Torque+1.5.58+

2. For Symbian: OBDScopev1.21

For WindowMobile-palm-pc-pocket pc:

3. ScanMaster--ELM v2.1-pc

4. PCMSCAN-pc

5. OBD2Spy

6. ELM327-V1.2-pc

7. EasyOBDII

8. wOBDCRAZY

Software CD is included.


Packing List:

1 * EOBD / OBD2 Main Unit

1 * CD-ROM


Product Show:
