Newest Black Mini WiFi ELM327 V1.5 OBD2 Car Auto Diagnostic Scan Tool

  • Works with most OBD-II compliant vehicles. Works on most 1996 to 2010 cars and light trucks sold in the United States, some 1994 and 1995 models are also ok. Software included in CD for Smartphone, PC and iOS (for iPhone, iPad, iTouch, Mac). Clear trouble codes and turn off the MIL ("Check Engine" light). Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
  • Email:Sales@autodiagtech.com
  • Details

  • Contact Us

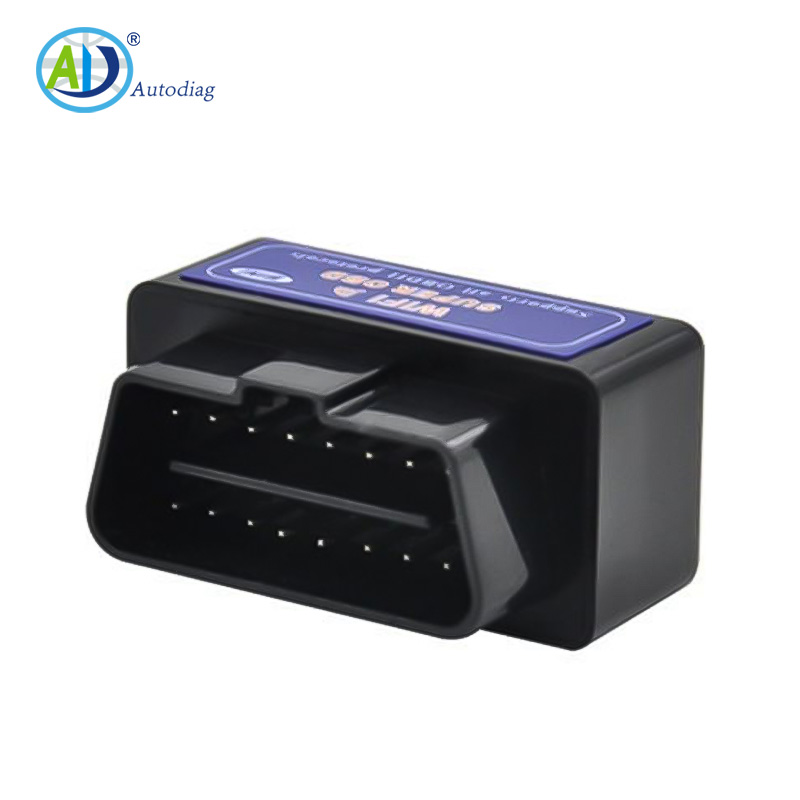

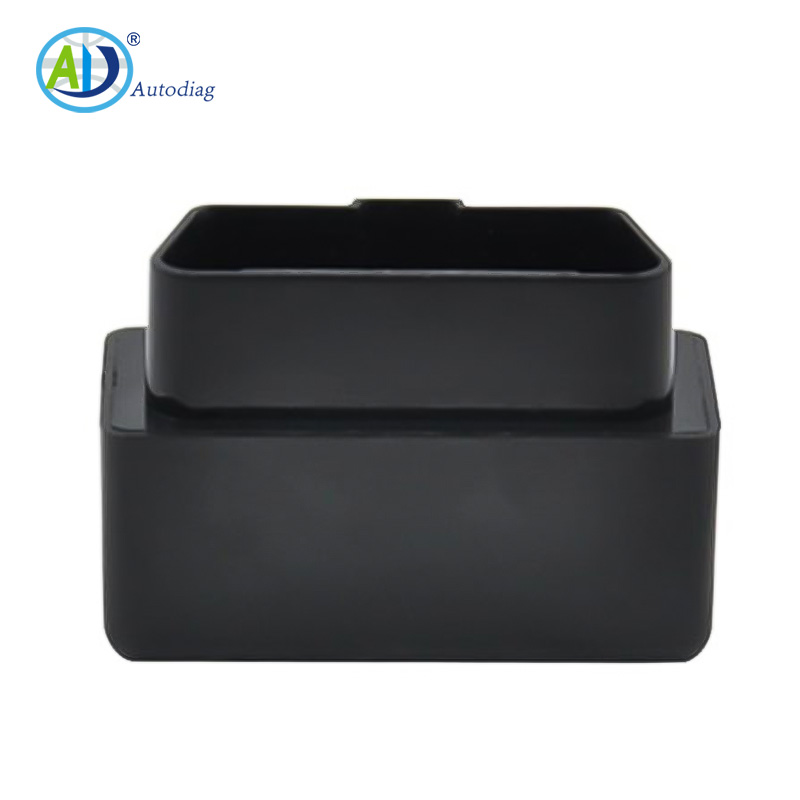

Newest Black Mini WiFi ELM327 V1.5 OBD2 Car Auto Diagnostic Scan Tool Code Reader ELM 327 Wifi For iPhone/iPad For iPod/Android





Description

Works with most OBD-II compliant vehicles.

Works on most 1996 to 2010 cars and light trucks sold in the United States, some 1994 and 1995 models are also ok.

Software included in CD for Smartphone, PC and iOS (for iPhone, iPad, iTouch, Mac).

Clear trouble codes and turn off the MIL ("Check Engine" light).

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).


How to see if your vehicle is comliant with OBD II?


Please pop the hood and look for a sticker named "VEHICLE EMISSION CONTORL INFORMATION".

WI-FI OBD AUTO CHECKER is capable of communicating with vehicles which adopt following Wifi OBD VGATE Technical


Specifications:

SSID: CLKDevices

IP: 192.168.0.10

Subnet: 255.255.255.0

Port: 35000

Range: 50 ft (Line of sight)

Antenna: Internal

Power Consumption: 0.75 Watts (With Power Switch)

Wifi Standard: 802.11a/b/g

Operating Temperature: -15 to 100 Deg Celsius

Plastic: Automotive Grade

Physical Dimensions: 2.75 x 1.25 x 1.2 inches



Features:

CLK is capable of communicating with vehicles which adopt following protocols:

ISO 9141

ISO 11898(aka. CAN)

ISO 14230(aka. KWP2000)

ISO 15765(aka. CAN)

SAE J1939


Function:

Vehicle Speed

RPM

Fuel Consumption*

Engine Coolant Temp

Fuel Pressure

Calculated Engine Load

Throttle Position

Intake Manifold Pressure

Air Intake Temp

Timing Advance

Mass Air Flow

Fuel Level

Barometric Pressure

EVAP System Vapor Pressure

Fuel Trim


Package:

1 x ELM327 WiFi Wireless OBD2 Interface
