Vagtacho USB Version V 5.0 VAG Tacho V5.0 For NEC MCU 24C32 or 24C64

VAG Kombiinstrument / Immo box eeprom programmer!

Windows 7, Vista, Win XP, Win 98 compatible software!

Support for some VDO dashes for VW from year 2009-2011 with NEC mcu and 24C32 or 24C64 eeprom memory. Important: These dashes requires ignition to be switched on with valid key of the car! Software version 5.0 works ONLY with interfaces which has got built-in programmer for Megamos ID48 transponders!

Built-in programmer for Megamos ID48 transponders! Pre-programming of TP2x transponders as dealer's keys with component security data which is read from immobiliser!

NEW key programming feature for VAG cars with VDO dashes on CAN bus! (TP2 and UDS protocols)

Note: TP22,23,24,25 transponders are required!

List of supported VAG cars:

For Volkswagen

Golf 6, Jetta, Polo, EOS with VDO dash 2009 - 2011, note: not all dashes are supported!

Golf 5, Caddy, Touran, Jetta, EOS with VDO dash 2003 - June.2006

Golf 4, Bora with VDO or Motometer/Bosch dash: 1997-2003

Beetle with Marelli dash: 1998 - 2005

Passat, Jetta, with VDO, Marelli or Motometer dash: 1997-2004

Polo with VDO or Motometer dash: 1999-2006 (1999-2002 mileage change only)

Sharan with VDO dash: 2000-2004(mileage change only)

Caddy, Lupo with VDO or Motometer dash 1997 - 2002(mileage change only)

Transporter with VDO dash 1998 - 2000

LT35 ( Temic immo box) 1999-2003 (pin code read only)

Gol ( Kostal immo box) 1999-2003 (pin code read only)

For Seat

Altea, Leon, Toledo with VDO 2003 - 6/2006

Leon, Toledo, Cordoba, Ibiza with VDO or Motometer dash 1997-2003

Alhambra with VDO 2000 - 2004(mileage change only)

Inca with VDO or Motometer 1997 -2000(mileage change only)

For Skoda

Octavia II with VDO dash 2005 - 6/2006

Octavia, Fabia with VDO dash 1997 - 2004

For Audi

A3 VDO dash 2003 - 2005

A3,A4,A6 VDO dash 1997 - 2000

A3,TT,A6 Magnetti Marelli dash 1998 - 2003

A4 Bosch dash 2000 - 2008 - Read/write of encrypted data with V4.5!

A4,A6,A8 1995-1999 (immo box - read pin code)

Vag tacho usb version 4.52

Vagtcho 4.52 is upgraded from vag tacho usb4.0, Upgrade Vagtacho usb 4.0 interface with Programmer for Megamos ID48 chips, our vagtacho version 5.0 has upgraded directly ,includes the functions for vagtacho usb 4.52

The benefits with this upgrade are:

Your Vagtacho interface will works with software vesrion 5.0 for the new VDO dashes with UDS protocol from year 2009+

Programming of new keys to VAG cars which are into FAZIT database.

Works with cars which has got locked key programming channel, or pin code is not accepted.

No need to wait up to 30 minutes for the key programming procedure.

With this upgrade, Vagtacho can program the new key in one minute

.

Vagtacho version 4.0

VAG Kombiinstrument / Immo box eeprom programmer!

Windows 7, Vista, Win XP, Win 98 compatible software!

Works on any computer which has got USB port!

Most of VAG dashes from 1997 to 2006 are supported!

Direct programming of Megamos ID48 (JMA-TP08) chips to VAG cars on CAN bus from November 2003 to June 2006

Transponder Maker Pro is required for pre-programming of these chips.

Note: TP22,23,24,25 transponders are NOT required!

1.Main functions:

Read ecu info

Read pin code

Change mileage

Read eeprom

Programmer new key

Write eeprom

Clear ecu errors

Viem memory buffer

2.List of supported VAG cars:

For Volkswagen

Golf 5, Caddy, Touran, Jetta, EOS with VDO dash 2003 - June.2006

Golf 4, Bora with VDO or Motometer/Bosch dash: 1997-2003

Beetle with Marelli dash: 1998 - 2005

Passat, Jetta, with VDO, Marelli or Motometer dash: 1997-2004

Polo with VDO or Motometer dash: 1999-2006 (1999-2002 mileage change only)

Sharan with VDO dash: 2000-2004(mileage change only)

Caddy, Lupo with VDO or Motometer dash 1997 - 2002(mileage change only)

Transporter with VDO dash 1998 - 2000

LT35 ( Temic immo box) 1999-2003 (pin code read only)

Gol ( Kostal immo box) 1999-2003 (pin code read only)

For Seat

Altea, Leon, Toledo with VDO 2003 - 6/2006

Leon, Toledo, Cordoba, Ibiza with VDO or Motometer dash 1997-2003

Alhambrawith VDO 2000 - 2004(mileage change only)

Inca with VDO or Motometer 1997 -2000(mileage change only)

For Skoda

Octavia II with VDO dash 2005 - 6/2006

Octavia, Fabia with VDO dash 1997 - 2004

For Audi

A3 VDO dash 2003 - 2005

A3,A4,A6 VDO dash 1997 - 2000

A3,TT,A6 Magnetti Marelli dash 1998 - 2003

A4 Bosch dash 2000 - 2005

A4,A6,A8 1995-1999 (immo box - read pin code)

3. How to programmer keys with vagtacho usb 4.0

Switch ON ignition with any key new or old, no mater which one.

Start software, select "VDO NEW - CAN bus" from menu.

Press "Connect Selected ECU" button, after 5 seconds the data of the dash will be shown on screen.

Press "Program New Key", software will read data from the dash and after few seconds a new window will be open.

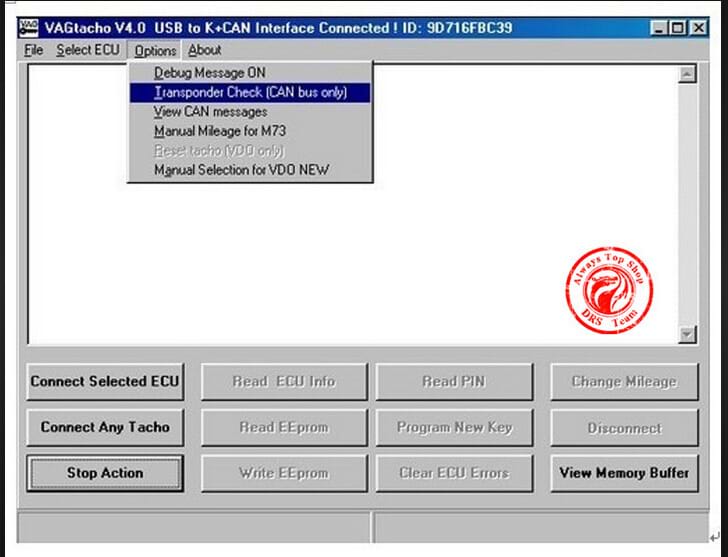

See the picture. ID numbers of the transponders which are stored into memory will be shown.
