X PROG M V5.0 Auto ECU Programmer V5.0 Metal

  • The XPROG-m supports in-circuit and on-board programming of Motorola 68HC05, 68HC08, 68HC11, 68HC(S)12 family MCU's, Texas Instruments TMS370/TMS374 family MCU's and serial EEPROM's.
    All supported devices are divided into "Software authorization" licenses. You can obtain authorization license only for these devices you are interested in.
    1.High quality
    2.Best price
    3.Best service
    4.Fast delivery
  • Email:Sales@autodiagtech.com
  • Details

  • Contact Us


X PROG M V5.0 Auto ECU Programmer V5.0 Metal X-PROG-M Universal Chip Tuning Tool


X PROG M V5.0 Description:

X PROG M V5.0 supports in-circuit and on-board programming of Motorola 68HC05, 68HC08, 68HC11, 68HC(S)12 family MCU's, Texas Instruments TMS370/TMS374 family MCU's and serial EEPROM's.

All supported devices are divided into "Software authorization" licenses. You can obtain authorization license only for these devices you are interested in.


X PROG M V5.0 "Software authorization" licenses:

Motorola HC05B/X family "Expert Option" authorization (bypass the security bit for reading).

SGS-Thomson M35080 EEPROM "Expert option" authorization (can erase full device)

Texas Instruments TMS370 MCU's family authorization. Now supports TMS374 MCU !!!

BMW EWS3 module programming via diagnostic line authorization.


X PROG M V5.0 Functional features:

Fully compatible with all software versions of " Device Programmer Desktop"

Software update (ATMEGA) - directly from "Device Programmer Desktop"

Software version control mechanism

Self check for error handling

High speed RS232 communication interface, fully compatible with USB to RS232 adapter

Fully upward-compatible XPROG connector

Multi functional XPROG-m connector

8 pin DIP socket for on- board programming

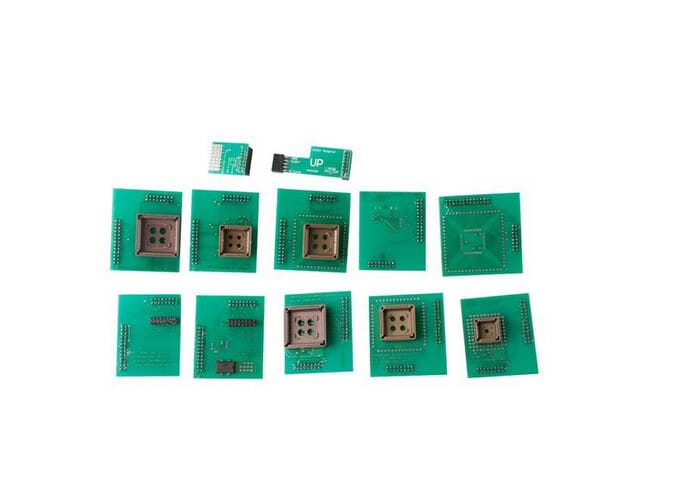

Supports many PLCC, QFP, LQFP adapters for on- board programming

High speed hardware engine (PLD)

Two PWM regulated and ADC controlled voltage regulators



Hardware Specifications:

Include high output current MPU.

External output for on-board device programming.

Serial port interface (up to 115K baud) works on (COM1, COM 2, COM3 or COM4).


Electrical Requirements :

Operating Voltage : 15V DC. The external power supply unit is needed

Power Consumption : 300 mA.


System Requirements for PC:

Processor

INTEL Pentium 60MHz or faster (depends on operating system)

Memory

(RAM) 32MB (depends on operating system)
Hard drive5MB free space
CommunicationOne free physical COM-port (or USB to RS232/COM adapter)
Operating systemMicrosoft Windows 95/ 98(recommended)/ NT/ ME/ 2000/ XP



EEROM read and write

Motorola HC05 family authorization (allows to read/write EEPROM)

Motorola HC08 family authorization (allows to read/write EEPROM)

Motorola HC11 family authorization (allows to read/write EEPROM)

Motorola HC(S)12 family authorization (allows to read/write EEPROM and flash memory)

Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM) 1

Motorola HC05B/X family bypass security authorization (allows to read/write secured EEPROM and flash memory)

ST M35080 read/write/erase authorization

BMW EWS3 authorization

ATmega family authorization (allows to read/write EEPROM and flash memory)

MB ZGS001 authorization

Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)

National CR16 authorization (allows to read/write EEPROM memory)
