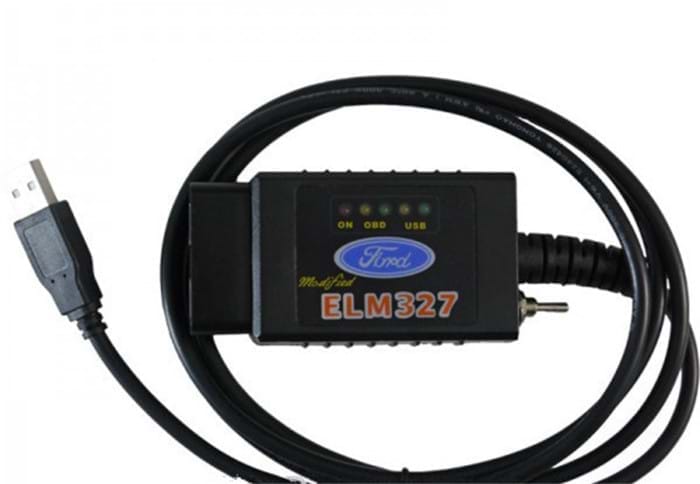

Use ELM327 vehicle hidden features

First, probably introduce ELM327 features

Functions:

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database)

Clear trouble codes and turn off the MIL ("Check Engine" light)

Display current sensor data, including

Engine RPM

Calculated Load Value

Coolant Temperature

Fuel System Status

Vehicle Speed

Short Term Fuel Trim

Long Term Fuel Trim

Intake Manifold Pressure

Timing Advance

Intake Air Temperature

Air Flow Rate

Absolute Throttle Position

Oxygen sensor voltages/associated short term fuel trims

Fuel System status

Fuel Pressure

Many others

1. Driver installed first ELM327, and the port selection is handled well

2. Open the car power, but do not start; self-test after switching off the power, but the key is not pulled out.

3. Open FoCCCus_0.8.6 (must use the latest version)

4. Remove Auto and Max imize speed in front of the hook, point open

5. First, the switch is to hs-can, into the Central Config Options

6. Click read from after BCM, vehicle information on all out (click save to be backed up file), may be read out of errors, such as errors, please re-read until the progress bar is 100%.

Then we can begin to brush hidden features of the vehicle

1.Driving the latch 3201 to 02

  120KM speed reminder 4401 to 03 (select Unknown, and then enter 03)

  Tire Pressure Monitoring 10101 to 44

  Brakes double flash 10602 to 04

  Meter change the background color: # 17204 to 08

  Lock the car whistle: manually enter 04 147 #

  Copilot seat belt does not alarm: # 13102 to 03

  Reverse Alert: 201 # 01 to 02

  Turn off the automatic start and stop: # 22202 to 01

Changing for the better, then click to write to BCM

The above is part of the ELM327 hidden features, tomorrow we will continue to put the rest of the half!
